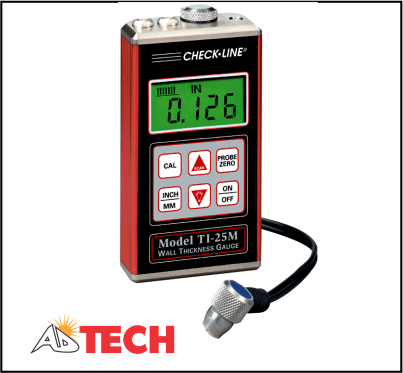

Máy đo độ dày kim loại Ultrasonic Wall Thickness Gauge TI-25M Checkline
TI-25M
Measuring Range in Steel
0.025 - 6.00 inches
0.60 - 150.0 mm
The new CHECK-LINE TI-25M Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The TI-25M can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The TI-25M probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
0.025 - 6.00 inches
0.60 - 150.0 mm
The new CHECK-LINE TI-25M Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The TI-25M can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The TI-25M probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
| TI-25M | TI-25M, Ultrasonic Wall Thickness Gauge Complete Kit | |||
| TI-25M-H | TI-25M-H High Temperature, Ultrasonic Wall Thickness Gauge Complete Kit (CF-4H High Temp Coupling Fluid HIGHLY RECOMMENDED) | |||
| TI-25M-107 | TI-25M-107, Ultrasonic Wall Thickness Gauge for Cast Iron and Plastics Complete Kit | |||
| TI-25M-HW | TI-25M-HW, Ultrasonic Wall Thickness Gauge For Heavy Walls Complete Kit | |||
| TI-25M-WOP | TI-25M, Ultrasonic Wall Thickness Gauge SUPPLIED WITHOUT PROBE. Probe must be ordered separately |
Specifications
| Range in Steel | 0.025-6.00" (0.60-150.0 mm) |
| Resolution | .001" (0.01 mm) |
| Display | 4½ - Digit, 0.5" Back-lit LCD |
| Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) |
| Probe | 7.5 MHz, 0.25" Diameter (6.35 mm) |
| Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available. |
| Battery Type | Two AA batteries |
| Battery Life | 200 hours |
| Weight | 7 ounces (196 g) |
| Size | 2.5 x 4.5 x 1.25" (64 x 114 x 32 mm) |
| Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
