Máy siết bu lông thủy lực Powermaster PXD-8 là thiết bị chuyên dụng sử dụng khí nén để tạo lực siết lớn và chính xác, phù hợp cho các ứng dụng công nghiệp nặng như đóng tàu, dầu khí, khai thác và lắp đặt thiết bị công nghiệp. Với mô-men xoắn cao, lực siết ổn định và độ lặp lại chính xác ±3%, máy đảm bảo hiệu quả và an toàn khi vận hành. Vỏ máy được chế tạo từ hợp kim nhôm siêu bền, trọng lượng nhẹ, chống ăn mòn. Thiết kế gọn gàng, dễ sử dụng và bảo trì. Sản phẩm đạt tiêu chuẩn chất lượng quốc tế từ thương hiệu Powermaster.

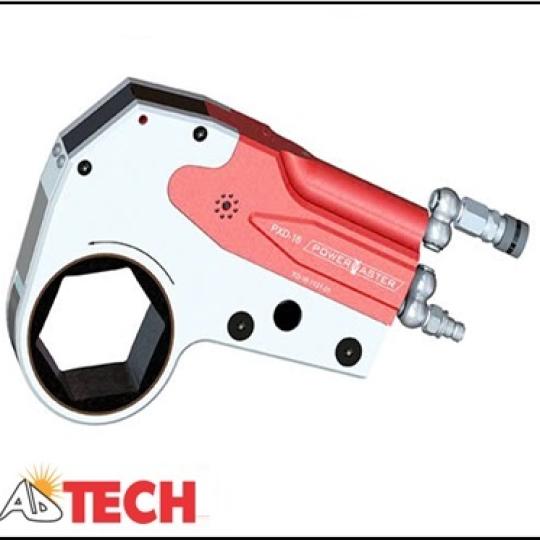

Máy siết bu lông bằng thuỷ lực dẫn động bằng khí nén Powermaster PXD-8
- Momen xoắn tối đa: 1.473 Kg-m
- Máy siết bu lông gồm bơm thuỷ lực và đầu xiết thuỷ lưc, ống dẫn, các đầu chụp có dải kích thước 42 mm đến 105 mm
1./ Bơm thuỷ lực EP-1000 Hydraulic Power Pack (Electric) with Mono-Port EP-1000
- Working Pressure 10,000 psi (700 Bar)
- High Flow ± High Speed for Heavy Duty Operation
- Single Phase induction motor ± 1.5 HP
- Quiet operation (approx. 80 dB @ 10,000 PSI).
- Easily adjustable pressure control knob.
- 2-Gallon oil reservoir.
- Flow Rate @ 600 PSI ± 11 lpm & @10000 PSI ± 0.9 lpm
- Quick-connect no-drip couplers with safety locking collar
- Supplied with dual non-conductive high-pressure hose with couplers.

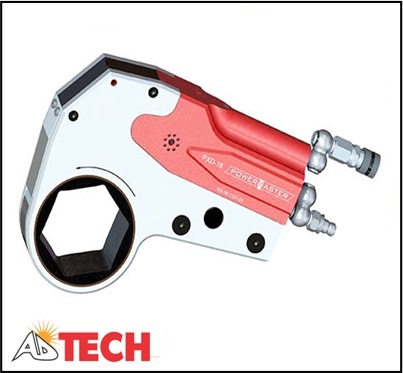

2./ Đầu siết thuỷ lưc PXD-8-RL
- PXD Series Hydraulic Torque Wrench Cylinder
- Tool Hex : 50 mm to 115 mm
- Min. Torque : 110 Kg-m (798 Ft/Lbs)
- Max. Torque : 1473 Kg-m (10,654 Ft/Lbs)
- Output Accuracy : +/- 3%
- Repeatability : 100%
- Duty Cycle : 100%
- Cylinder Weight : 5.33 Kg.
3./ Các đầu chụp có dải kích thước 42 mm đến 105 mm
| 2.1 | PXD-8RLM42 Ratchet Link, Size-49mm, For Use with Cylinder - PXD-08 |
1 |
| 2.2 | PXD-8RLM46 Ratchet Link, Size-46mm, For Use with Cylinder - PXD-08 |
1 |
| 2.3 | PXD-8RLM50 Ratchet Link, Size-50mm, For Use with Cylinder - PXD-08 |
1 |
| 2.4 | PXD-8RLM55 Ratchet Link, Size-55mm, For Use with Cylinder - PXD-08 |
1 |
| 2.5 | PXD-8RLM60 Ratchet Link, Size-60mm, For Use with Cylinder - PXD-08 |
1 |
| 2.6 | PXD-8RLM65 Ratchet Link, Size-65mm, For Use with Cylinder - PXD-08 |
1 |
| 2.7 | PXD-8RLM70 Ratchet Link, Size-70mm, For Use with Cylinder - PXD-08 |
1 |
| 2.8 | PXD-8RLM75 Ratchet Link, Size-75mm, For Use with Cylinder - PXD-08 |
1 |
| 2.9 | PXD-8RLM80 Ratchet Link, Size-80mm, For Use with Cylinder - PXD-8 |
1 |
| 2.10' | PXD-8RLM85 Ratchet Link, Size-85mm, For Use with Cylinder - PXD-8 |
1 |
| 2.11' | PXD-8RLM90 Ratchet Link, Size-90mm, For Use with Cylinder - PXD-8 |
1 |
| 2.12' | PXD-8RLM95 Ratchet Link, Size-95mm, For Use with Cylinder - PXD-8 |
1 |
| 2.13' | PXD-8RLM100 Ratchet Link, Size-100mm, For Use with Cylinder - PXD-8 |
1 |
| 2.14' | PXD-8RLM105 Ratchet Link, Size-1055mm, For Use with Cylinder - PXD-8 |
1 |
